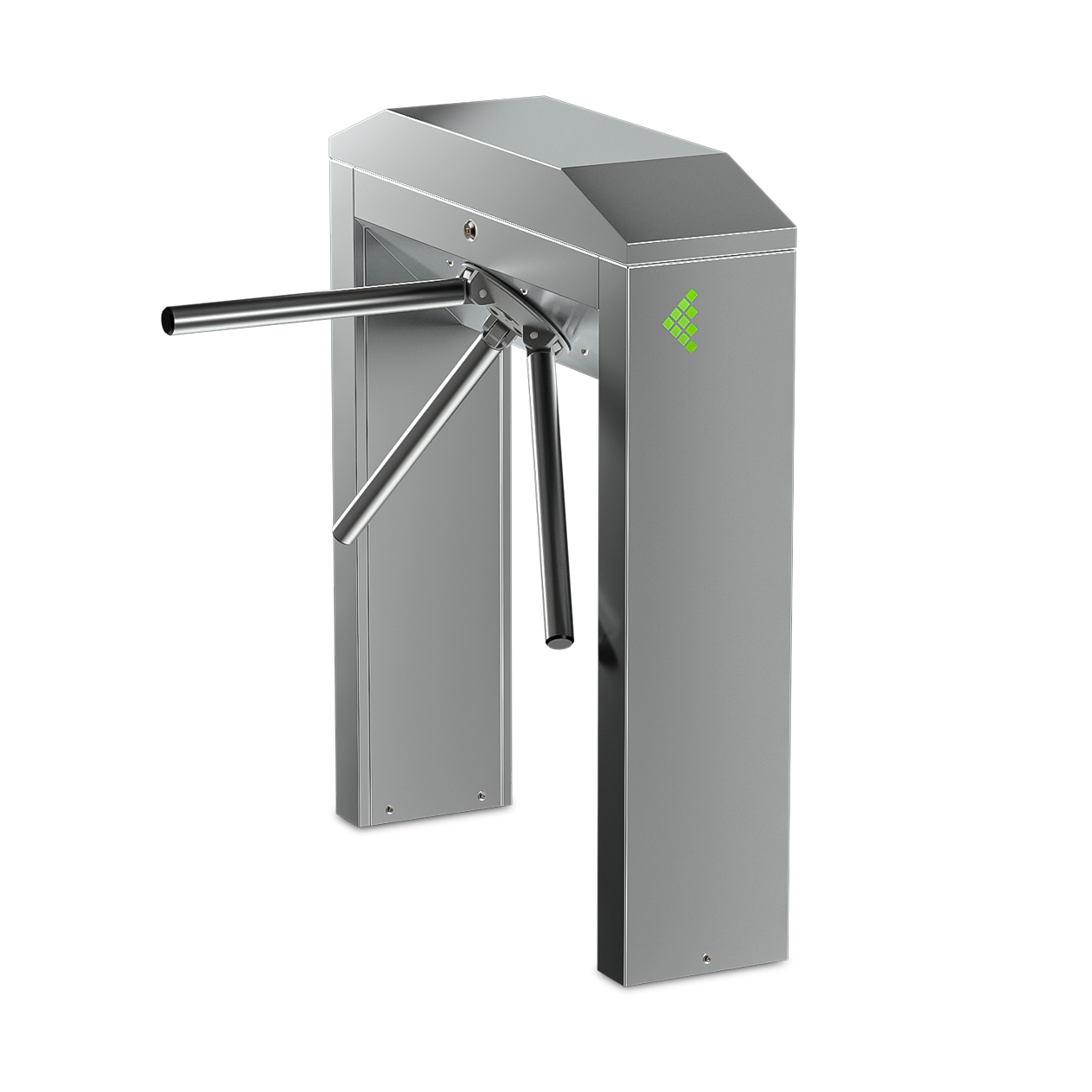

SCT100-A – Tripod Turnstile with Angle Cover
Enhanced Durability | Clean Design Lines | Everyday Security Control
The SCT100-A Tripod Turnstile features a double-leg stainless steel body with a sleek angled top cover, offering both aesthetic appeal and functional protection for indoor or outdoor installations. Designed for controlled pedestrian entry and exit, this model delivers durable security performance in public buildings, educational institutions, office complexes, and industrial environments.
With its minimalist angled cover and robust construction, the SCT100-A ensures one-person-at-a-time passage while supporting all standard access control systems.
Key Features:
Double-Legged Frame with Angled Cover
A stable, dual-support structure paired with an angled top panel improves weather runoff, ease of cleaning, and visual appeal in modern access control zones.
Adjustable Bi-Directional Access
Manual switching in both directions with adjustable delay and direction control. Optional motorization available for automatic rotation or integration into high-security systems.
Compact and Efficient
Designed for moderate to high-traffic entrances where space is limited but visual presentation and security are a priority.
Compatible with Access Systems
Seamlessly integrates with RFID readers, biometric scanners, barcode readers, and keypads via standard contact or network communication.
Optional Emergency Drop Arm
In case of power failure or emergency, the arms can be configured to drop automatically, allowing free and safe passage.
Technical Specifications:
Model: SCT100-A
Material: 1.2 mm AISI 304 stainless steel (optional 316 or powder-coated finish)
Arm Diameter: Ø38 mm aluminum with electrostatic powder coating
Operation: Manual bi-directional switching (adjustable timing and direction)
Ingress Protection: IP54 (optional IP56)
Operating Temperature: -20°C to +68°C (optional -50°C with integrated heater)
Passage Width: 470–520 mm
Power Supply: 110–220V AC, 50/60 Hz
Power Consumption: 24V DC, standby 12W / max 60W
Indicators: Bi-directional LED indicator panel
Control System: Dry contact, TTL (5–48V), RS232/RS485/LAN optional
Optional Features:
Emergency drop arm
Heater and battery backup
Remote control receiver
LED lighting
Outdoor protective cover
The SCT100-A with angled cover is the perfect balance of form and function—rugged, refined, and ready to manage secure pedestrian flow wherever you need it. Its sleek design and modular options make it a favorite for modern architectural environments.
Description
Single Tripod Turnstile with Angle Cover – Secure & Space-Efficient Access Control
The Single Tripod Turnstile with Angle Cover is a highly durable and space-efficient access control solution designed for both indoor and outdoor applications. With its sturdy construction, modern design, and advanced access control capabilities, this turnstile is ideal for securing entry points in office buildings, industrial sites, stadiums, and other high-traffic environments.
Key Features & Benefits
✅ Reliable Access Control: Ensures one-person-at-a-time entry, preventing unauthorized access and enhancing security in restricted areas.
✅ Durable & Weather-Resistant Build: Constructed with high-quality stainless steel (AISI 304) with optional 316 stainless steel or powder-coated finish, making it ideal for indoor and outdoor use.
✅ Space-Saving Design: The angle cover design provides added stability and a sleek, compact structure, perfect for facilities with limited space.
✅ Smooth & Controlled Operation: Features a hydraulic brake and slide bearing system for quiet, smooth, and controlled rotation.
✅ Efficient Traffic Flow: Supports up to 25 people per minute, ensuring seamless movement and efficient access management.
✅ Versatile Power Compatibility: Operates on 110V – 240V AC 50/60 Hz or 24V DC, offering installation flexibility for different site conditions.
✅ Seamless Integration with Access Control Systems: Compatible with RFID readers, biometric scanners, remote access, and manual control, allowing for customized security setups.
✅ Customizable for Unique Needs: Optional outdoor covers, button panels, remote control units, and stabilizing bottom plates enhance adaptability to various security requirements.
The Single Tripod Turnstile with Angle Cover provides a secure, efficient, and compact access control solution for businesses and facilities that demand high-performance security with a modern design.
Looking for a tailored security solution? Contact us today for customization options to meet your specific requirements!
