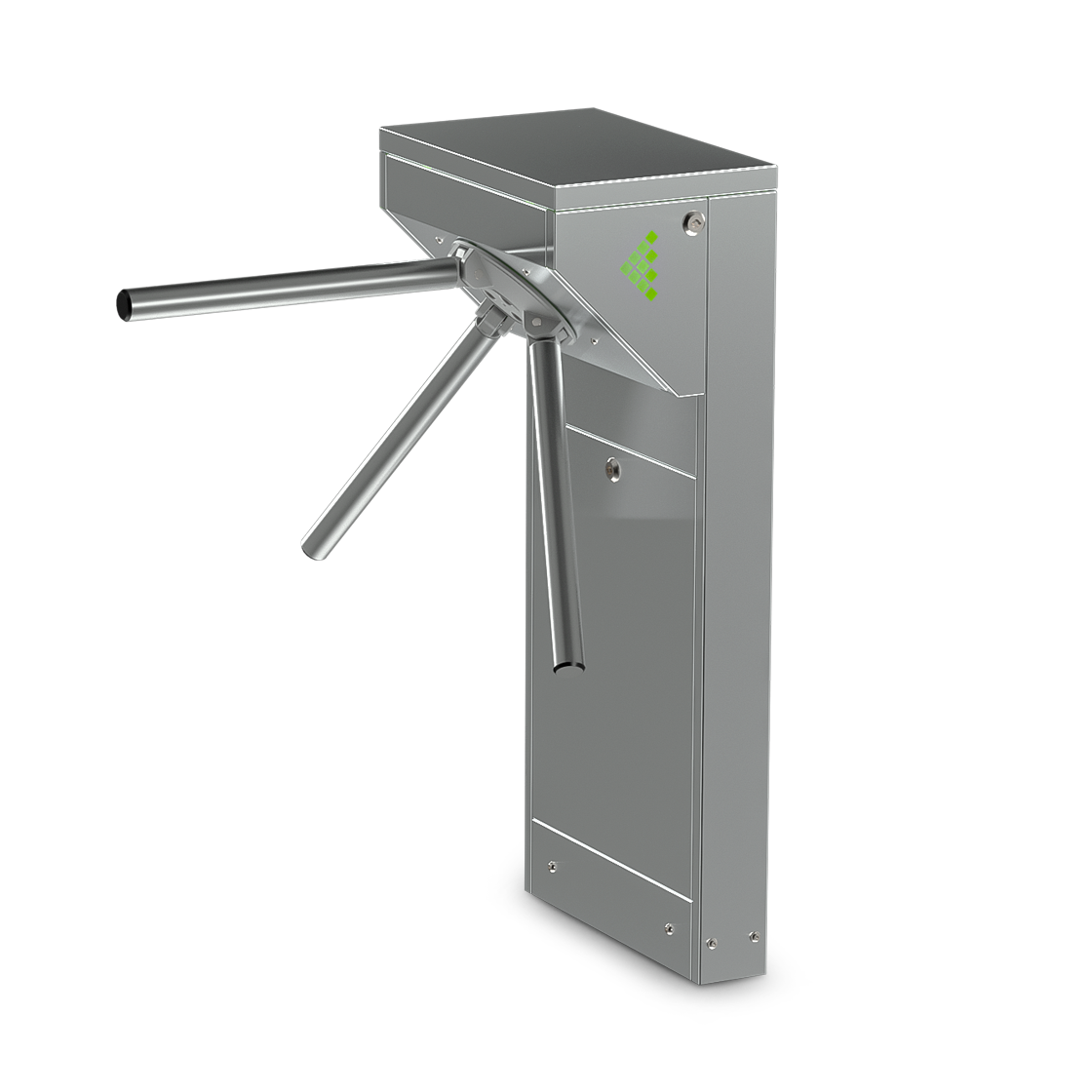

SCT120 – Tripod Turnstile
Modern Design | Sturdy Performance | Everyday Access Control
The SCT120 Tripod Turnstile offers a balance of functionality and visual appeal, making it a reliable solution for offices, public institutions, universities, commercial complexes, and transportation hubs. Designed to handle moderate to high foot traffic, this unit features a robust stainless steel body, smooth bi-directional operation, and the ability to integrate with a wide range of access control systems.
Its clean, modern design and user-friendly functionality make the SCT120 a perfect fit for secure environments that demand both performance and aesthetics.
Key Features:
Full-Sized Stainless Steel Housing
Constructed with 1.2 mm AISI 304 stainless steel, the SCT120 is built for long-term use in indoor or semi-outdoor environments. Optional 316-grade or powder-coated finishes are available.
Bi-Directional Control with Adjustable Timing
Supports manual switching in both directions, with programmable delay and reset times. Motorization and emergency drop-arm features can be added based on your site’s requirements.
Modern Flat-Top Design
The flat surface provides a sleek, minimalist profile while offering protection for internal components and compatibility with card readers or biometric devices.
Access Control Compatibility
Connects easily with RFID readers, fingerprint scanners, keypads, and barcode readers via dry contact or optional RS232/RS485/LAN interfaces.
Safe & Efficient Passage
Designed to ensure controlled one-at-a-time entry, helping reduce tailgating and improve crowd management at key access points.
Technical Specifications:
Model: SCT120
Material: AISI 304 stainless steel (1.2 mm thick); optional 316 or powder-coated
Arms: Ø38 mm aluminum, powder-coated
Ingress Protection: IP54 (optional IP56)
Operating Temperature: -15°C to +60°C (optional -50°C with heater)
Passage Width: 470–520 mm
Operation: Manual or motorized bi-directional rotation
Power Supply: 110–220V AC, 50/60 Hz
Power Consumption: 24V DC; standby 12W / max 60W
Indicators: Double-color LED direction panels
Control System: TTL CMOS (5–48V), dry contact, optional RS232/RS485/LAN
Optional Features:
Emergency drop-arm with auto-reset
Battery backup (UPS)
Outdoor weather shield
Remote control system
Integrated access control modules
The SCT120 is a dependable, versatile tripod turnstile designed to meet the evolving demands of modern access control environments. With its durable construction and integration-ready features, it's an ideal solution for organizations that prioritize both security and style.
Description
Reliable and Customizable Tripod Turnstile for Secure Access Control
This high-performance tripod turnstile is designed to provide controlled, efficient entry management for a variety of access control environments. Constructed from 1.2 mm thick 304 stainless steel, it offers durability and longevity, with optional 430 stainless steel or electrostatic powder coating for added customization.
Key Features & Benefits
✅ Flexible Bi-Directional Operation: Supports adjustable manual switching in both directions, ensuring smooth and controlled passage.
✅ Premium Build Quality: Available in 304 stainless steel, with optional 430 stainless steel or powder-coated finishes for different environmental needs.
✅ Weather-Resistant and Versatile: Rated IP54 (optional IP56) and operates efficiently in temperatures ranging from -20°C to +68°C, with an optional heater (-50°C) for extreme conditions.
✅ Enhanced Safety & Alerts: Features adjustable switching time, LED indicators, an audible alarm, and bidirectional access lights for improved security.
✅ Emergency-Ready Design: Handles automatically run idle during emergencies, with an optional drop arm for rapid evacuation.
✅ Energy-Efficient Performance: 24V DC low-power operation, with a built-in SMPS power supply system to stabilize electrical fluctuations.
✅ Seamless Integration: Fully compatible with all access control and token systems, with optional RS232-485 or LAN connectivity for remote management.
✅ Customizable Accessories: Includes heater, battery unit, and dry contact compatibility, allowing enhanced functionality based on site requirements.
With a 470mm–520mm transition range and deterrent-level security, this tripod turnstile is ideal for corporate offices, industrial sites, stadiums, public transportation hubs, and other high-traffic locations that require secure access control.
