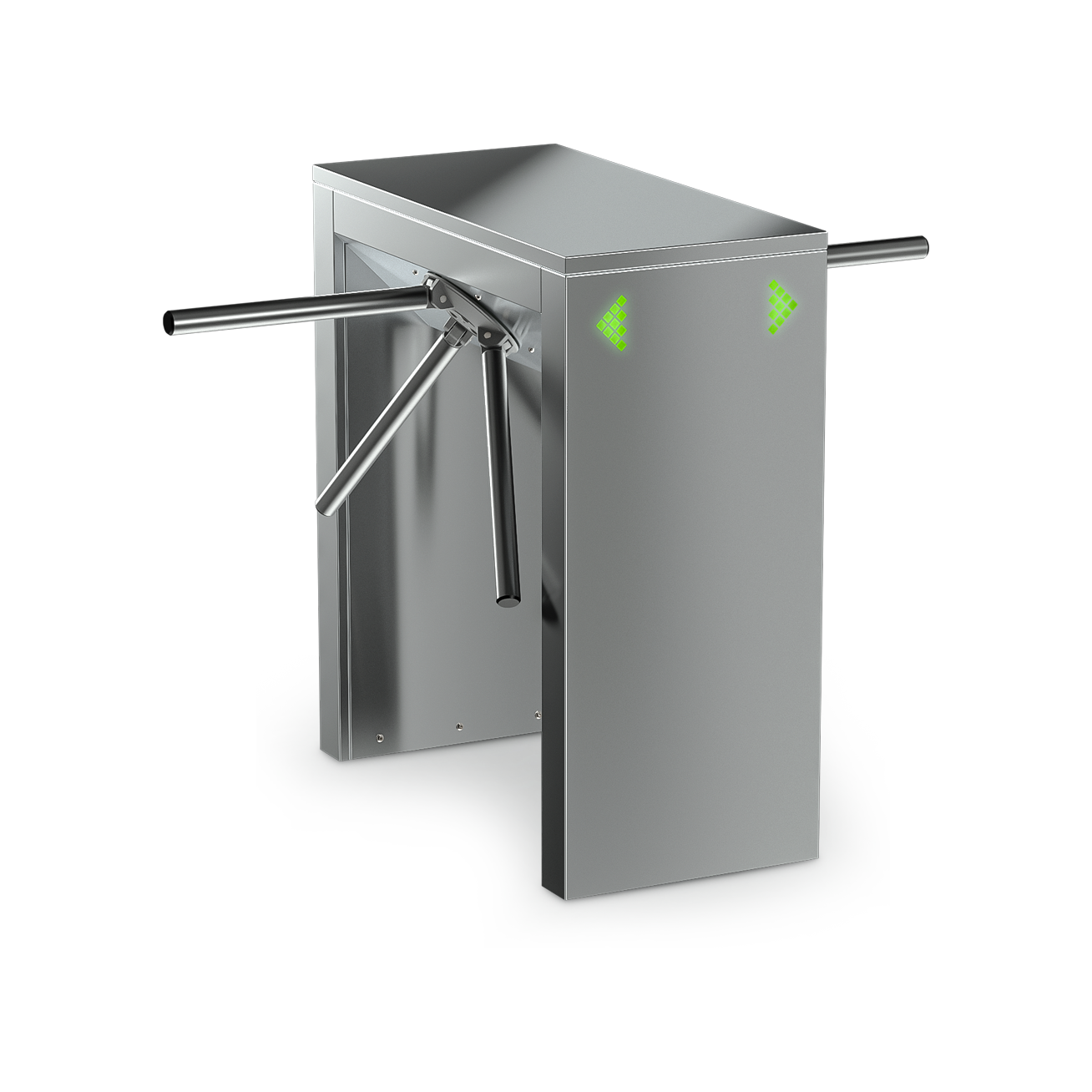

SCT100-D – Double Tripod Turnstile with Angle Cover
High-Capacity Access Control | Dual-Lane Efficiency | Built for Demanding Environments
The SCT100-D is a double-lane tripod turnstile housed in a sleek angled-cover stainless steel body, designed for efficient, high-throughput pedestrian management. With two independently functioning turnstile mechanisms within one housing, it’s ideal for metro stations, stadiums, industrial sites, and educational institutions where space efficiency and security are paramount.
Engineered for both performance and durability, the SCT100-D offers manual or motorized operation, access system compatibility, and enhanced design for modern access environments.
Key Features:
Dual-Lane Design
Accommodates two pedestrian lanes in a single unit—perfect for high-traffic entrances where speed and space-saving are essential.
Angled Top Cover
Modern angular design enhances aesthetics and helps with water runoff and debris resistance, making it suitable for both indoor and outdoor use.
Reliable Bi-Directional Control
Each lane operates independently with adjustable switching direction and timing. Available with optional drop arm or motorization for higher automation.
Stainless Steel Durability
Fabricated from 1.2 mm thick AISI 304 stainless steel with options for 316-grade or powder-coated finishes, ensuring long-term resistance to weather and wear.
Full Integration Capability
Supports connection with access control systems such as RFID readers, biometrics, QR/barcode scanners, and keypads through standard or network protocols.

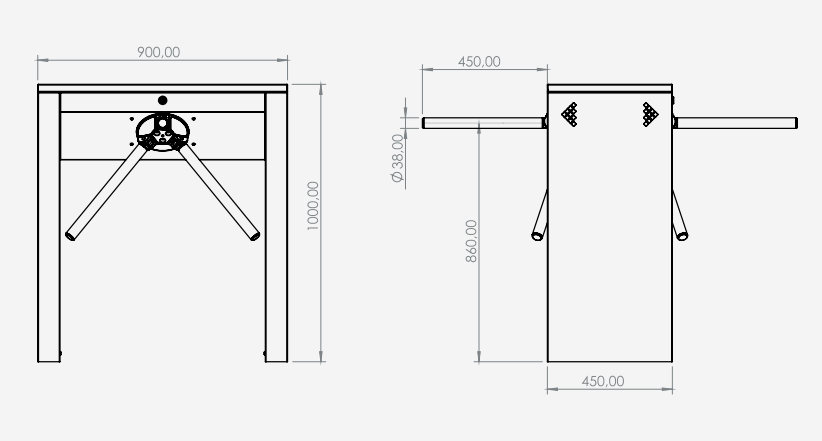

Technical Specifications:
Model: SCT100-D
Material: AISI 304 stainless steel (1.2 mm thick), optional 316 or powder-coated finish
Arms: Ø38 mm aluminum with powder coating
Operation: Manual switching (motorized optional), adjustable timing/direction
Ingress Protection: IP54 (optional IP56)
Operating Temperature: -20°C to +68°C (optional -50°C with heater)
Passage Width (each lane): 470–520 mm
Power Supply: 110–220V AC, 50/60 Hz
Power Consumption: 24V DC; standby 12W / max 60W
Indicators: Independent bi-directional LED panels per lane
Control System: Dry contact, TTL 5–48V, RS232/RS485/LAN optional
Optional Features:
Drop arm function with auto-reset
UPS battery backup
Outdoor protection cover
LED spotlights or logo engraving
Remote control receiver and programmable logic
The SCT100-D is built for speed, security, and scalability—two lanes, one unit, zero compromises. From transit terminals to corporate campuses, it offers a compact, high-performance pedestrian access solution that delivers day in and day out.
Description
Double Tripod Turnstile with Angle Cover – High-Performance Dual-Lane Access Control
The Double Tripod Turnstile with Angle Cover is a robust and efficient access control solution designed for high-traffic areas requiring dual-lane entry management. Its durable construction, modern design, and advanced security features make it ideal for both indoor and outdoor installations in commercial, industrial, and public environments.
Key Features & Benefits
✅ Dual-Lane Efficiency: Allows for simultaneous passage through two lanes, increasing throughput capacity and reducing wait times.
✅ Durable & Weather-Resistant Build: Made from high-quality stainless steel (AISI 304) with an optional 316 stainless steel or powder-coated finish, ensuring long-lasting durability in various environments.
✅ Optimized for Security & Flow: Supports up to 25 people per minute per lane, making it an ideal solution for high-traffic entry points while maintaining secure access control.
✅ Enhanced Stability & Operation: The angle cover design provides extra structural support, ensuring a sturdy and reliable installation.
✅ Smooth & Controlled Access: Equipped with a hydraulic brake and slide bearing system, offering quiet and controlled operation for a seamless user experience.
✅ Versatile Power Compatibility: Operates on 110V – 240V AC 50/60 Hz or 24V DC, making it adaptable to various site requirements.
✅ Smart Access Control Integration: Fully compatible with RFID readers, biometric systems, and remote access controls, ensuring seamless security integration.
✅ Customizable & Expandable: Optional outdoor covers, button panels, remote control units, and stabilizing bottom plates enhance functionality and adaptability for specific project needs.
The Double Tripod Turnstile with Angle Cover is an efficient, high-security solution designed for high-volume pedestrian traffic. Its sturdy build, modern aesthetics, and advanced control features make it the ideal choice for facilities requiring durable, dual-lane access control.
Looking for a tailored access control solution? Contact us today for customization options to meet your specific needs!
